These are an automatic filling lines suitable to handle rigid containers for aerosol and 1 inch valves.

The machines bodies consist of a frames and crankcases made of AISI 304 stainless steel.

Inside the crankcases there are the indexing electrical motor drive and the pneumatic system, which move the star wheel and the operating units.

Available the electronic version equipped by brushless electrical motor and the electric-pneumatic system.

It could be features from 12, 18, 24 or 32 position rotating star wheel or rotary index mode, that can support cans with a maximum diameter of 66mm and minimum height of 70mm.

On the baseplate of the machines, there is a central adjustable column, on which the operating units are housed.

All the parts in contact with the product are made of AISI 316 stainless steel and all gaskets are accurately selected to be the best fit for your needs.

There are protective shatterproof glasses that surround all the moving parts that may be dangerous to the operators.

Depending on the model, the number of the devices installed and the production speed required, machines can run single indexing, multiple indexing or rotary mode.

The machines is designed and manufactured to be extremely versatile, as well as extremely reliable and safe. All units comply with the up to dated norms of the European Economical Community (CE mark) and are designed to operate in Atex Areas.

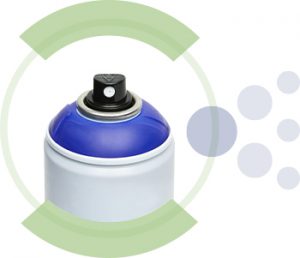

The process is specifically designed to fill paints

Standard units available on this line:
• Filling product unit with recycle system and cleaning mode
• Automatic inserting aerosol valve unit
• Crimping of the aerosol valve unit
• Gassing unit
• Hot water bath test
• Checkweigher system
• Actuator placing unit
• Cap placing unit
• Others special devices available on request.
